VSE L5P CCV Upgrade Kit, 2017-2024 L5P

Fits: 2017 thru 2024 Chevy Silverado/GMC Sierra 2500HD/3500HD L5P Duramax Diesel

*Allow 10-15 business days for processing from the manufacturer*

This is an upgrade to the existing L5P CCV system that is failure prone due to cracking of the factory plastic over time. It also stops the high temperature charge air temp from the turbo from being drove through the factory CCV system and into the intake air horn into the turbo inlet. The CCV upgrade system once installed will allow more oil to be removed from the CCV supply line by usage of 2 differential drop devices that are integrated into the CCV block. This highly effective method, used for years in marine applications and other high output diesel applications is passive (no moving parts) and will keep the intake track of your L5P as clean as possible and avoid hot air combined with oil from entering the system. The factory CCV tends to fail and break over time. As it is failing it allows the boost pressure from the CCV to be applied through the CCV system and be introduced into the intake track via the intake air horn. The factory CCV system is NOT SERVICABLE as a part does not exist until now to replace it. To fix a failed CCV system on the L5P the entire drivers side valve cover needs to be removed including the injectors and fuel lines to gain access to it. This is a 6 hour job and an un-necessary expenses! By removing the factory CCV component you remove the failure prone oil fill location. The factory oil fill location is in a bad spot for anyone using gallon fill jugs. Our kit locates the oil fill connection to the front of the motor with a billet standpipe tall enough to clear engine accessories and provides a great place to fill the motor with engine oil. It also separates the CCV system from the oil fill port for safety purposes.

 Notes:

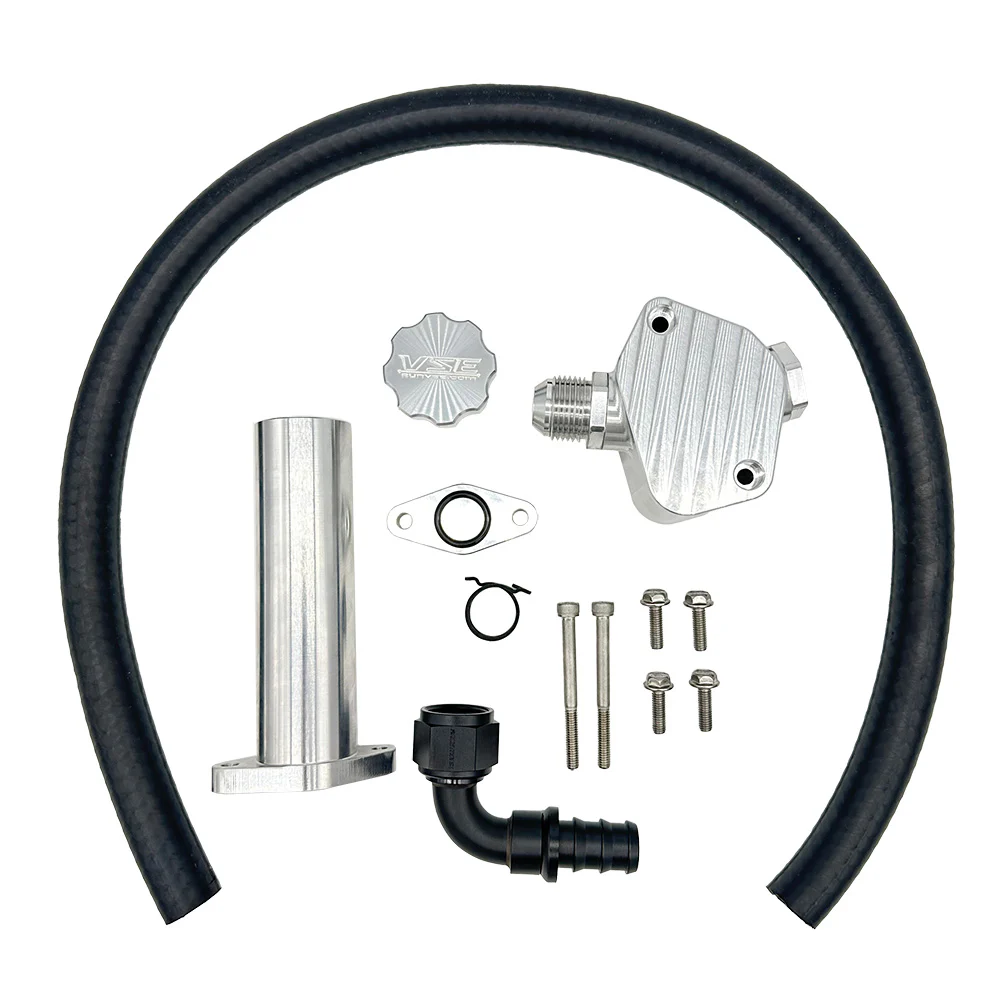

• Extractor is included

• THE MANUFACTURE, SALE, OFFER FOR SALE, OR INSTALLATION OF THIS PRODUCT IS NOT LEGAL IN CALIFORNIA.
