Fits: 2020 thru 2025 Chevy Silverado/GMC Sierra 2500HD/3500HD L5P Duramax Diesel

The TITAN tank is 24 gallons larger at 60 gallons. The stock tank is only 36 gallons.

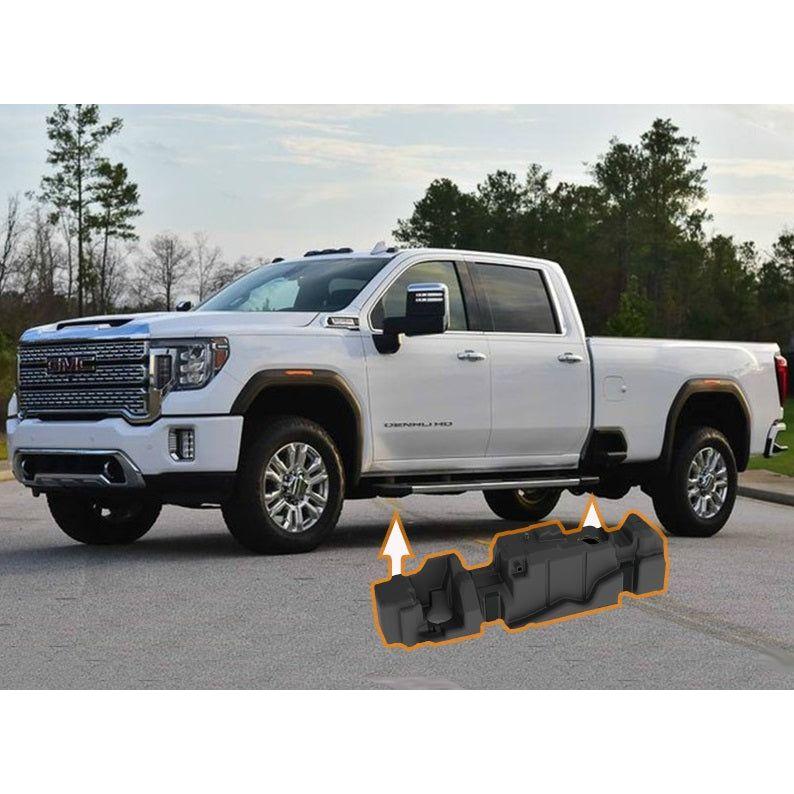

60 Gallon*, extra capacity, extra heavy duty, midship replacement fuel tank for 2020-2025 GM 2500HD and 3500HD pickups with Crew Cabs, Long Beds, and Duramax diesel engines. This tank does NOT fit the 2 wheel drive trucks, it ONLY fits the 4 wheel drive trucks.

Tank comes complete with black, baked epoxy-coated, galvanized steel mounting straps. Tapered tank features exclusive low fuel trap design so most every gallon can be used, and is approximately only 2” deeper than the stock OEM tank. Very similar in appearance to original equipment tank. TITAN’s Generation 6 tanks feature the TITAN Torque Ring™ OEM style sending unit mounting system for easy, positive installation.

TITAN Fuel Tanks Direct Replacement, Mid-Ship Fuel Tanks are manufactured to use the trucks stock/original equipment fuel sending unit. The trucks stock sending unit is removed from the stock tank and mounted into the TITAN tank. They are a direct fit, there are no modifications needed. With use of the stock sending unit, the trucks analog fuel gauge will read correct and accurate with the TITAN tank.

This new General Motors tank is made of our famous military grade, cross-linked polymer (XLHDPE). It’s at least ¼” thick and built to outlast all competitors. It’s tougher than steel and more durable than aluminum. Like all fine TITAN products, this new design has undergone extensive testing. Our legendary products are so tough and well-proven that we back them with a Lifetime Warranty+!

Technical Service Bulletin: Effected Vehicles: 2019-to Current GM 6.6L Diesel Crew Cab Short and Long Bed Trucks Issue: Fuel gauge Drops to Empty After Initial Install and Vehicle Driven Approximately 100 Miles. Explanation: The GM trucks have the ability through programming and monitoring to know exactly how much fuel is in the fuel tank as well as fuel consumption based on miles driven and fuel economy. The design of our XXL tanks adds additional fuel volume above the OEM float which in turn will hold the float on full past what the computer thinks is acceptable. The truck will run a system check and see that the Fuel gauge is reading out of specifications and will zero the fuel gauge. This will put the truck into a semi-adaptive learning mode and the truck will start to align the specifications with the current truck parameters. In our experience 4-5 full tanks ran from Full to empty will fix this issue on analog gauges. Truck with digital gauges (such as Denali, AT4, and High Country models) can take up to 10 full tanks to remedy this issue. Recommendations: Run tank from full to empty, do not fill up until tank is close to empty.

Features:

60 gallon tank
OEM tank replacement
Built with military-grade, cross-linked polymer material
Direct fit with a bolt-in application
No fabrication or cutting required
Lifetime warranty

Notes:

Use with diesel fuel ONLY!
Does not interfere with powered steps, air bag systems and other accessories.
Tanks are compatible with Fleece, AirDog, FASS, etc.
*Will not fit 2WD!*
*Hellwig aftermarket rear sway bar #7782 is not compatible with this tank (7010320)*
*Does not fit with the B&W model 1016 Turnoverball Hitch or the Curt model 60642*
*Expedited shipping options not available*
*Additional shipping charges may apply to certain locations*

Installation Guide

2020 (L5P)

Titan 56 Gallon Fuel Tank Crew Cab Short Bed, 2020-2025 L5P

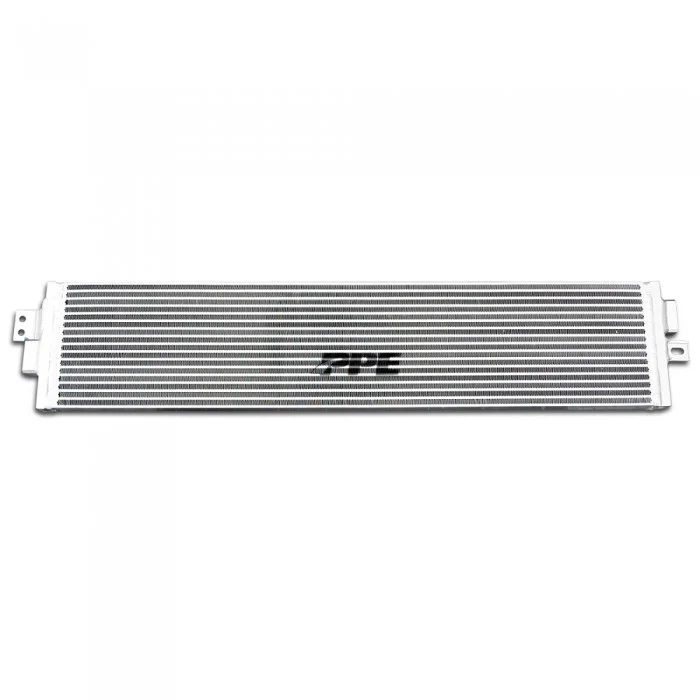

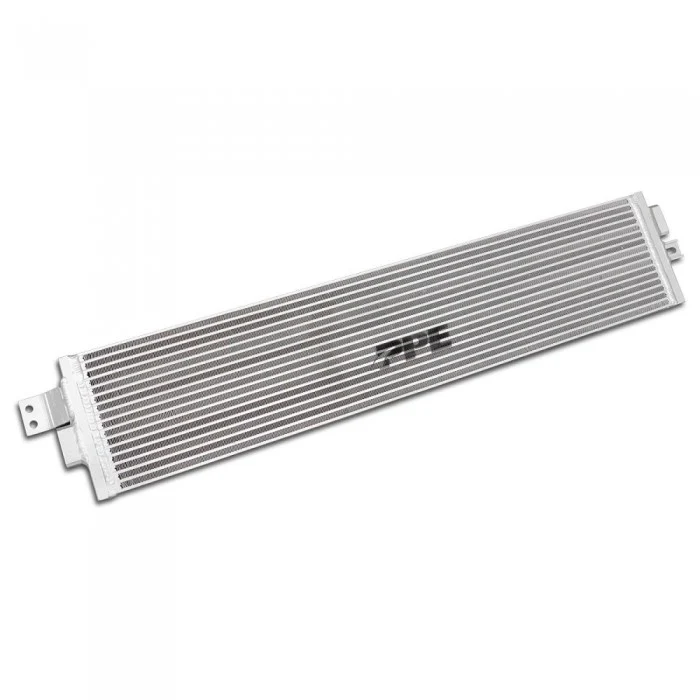

PPE Transmission Cooler, 2020-2026 L5P
